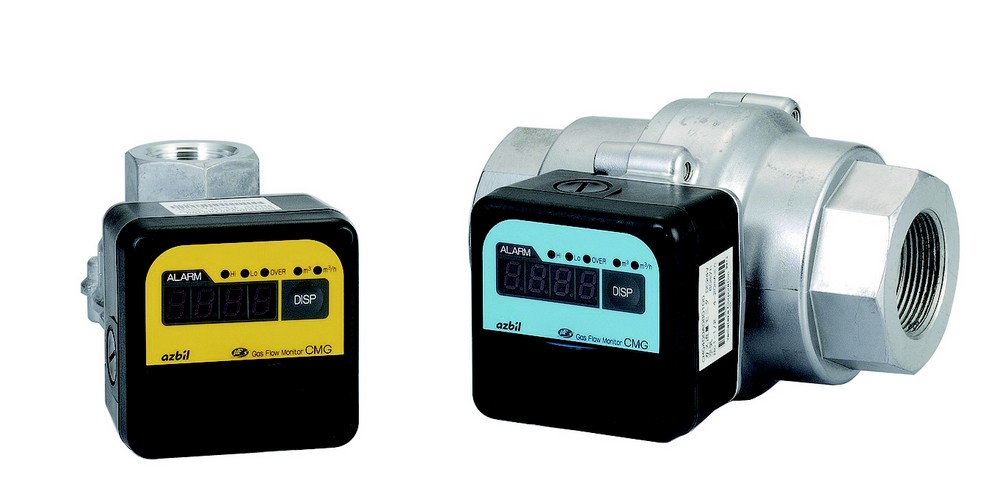

CMG

The CMG series is composed of mass flow meters with low pressure loss (200 Pa.) suitable for measurement of fuel gas at low pressure. The CMG is ideal for power management of individual burner. The measurement ranges are 4, 10, 30, 80 to 150 m3/h (normal).
Gas Type: Air, city gas, butane, propane.

CMG

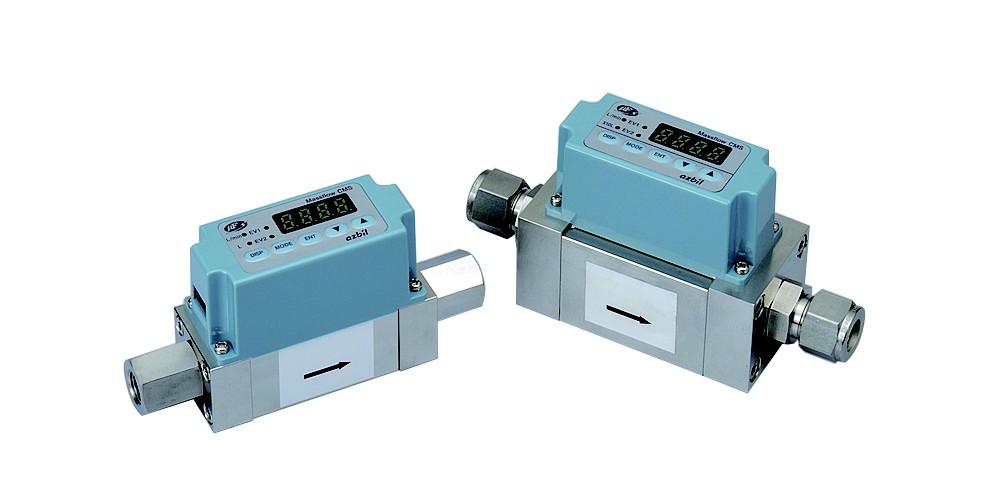

CMS

The gas mass flowmeter series CMS do not need temperature and pressure compensation.
They offer a very good accuracy (± 3% RD), a wide turndown ratio (100:1) and a low pressure loss (1kPa max.) (excluding CMS500/1500).
The display mounted on the sensor can show the instantaneous flow or the integrated output value. The measurement ranges are from 0.5l/min to 1500l/min.

Applicable gas: Air, Nitrogen, Argon, City gas, Methane, Propane, Butane, Oxygen, Hydrogen, Helium and carbon dioxide.

CMS

MCS

Compact, lightweight and fast, the miniature MCS Flowmeter is designed for applications in physics, medicine and industry.

  • Fast response time: max 5msec
  • Lightweight: 9 grams
  • Fluid: Air and nitrogen (standard)
  • Accuracy: ± 5%
  • Power: 12 ~ 24VDC (MCS100) 5VDC (MCS200)
  • Output: 1-5VDC
  • Connections: M5 (MCS100) or connector (MCS200)

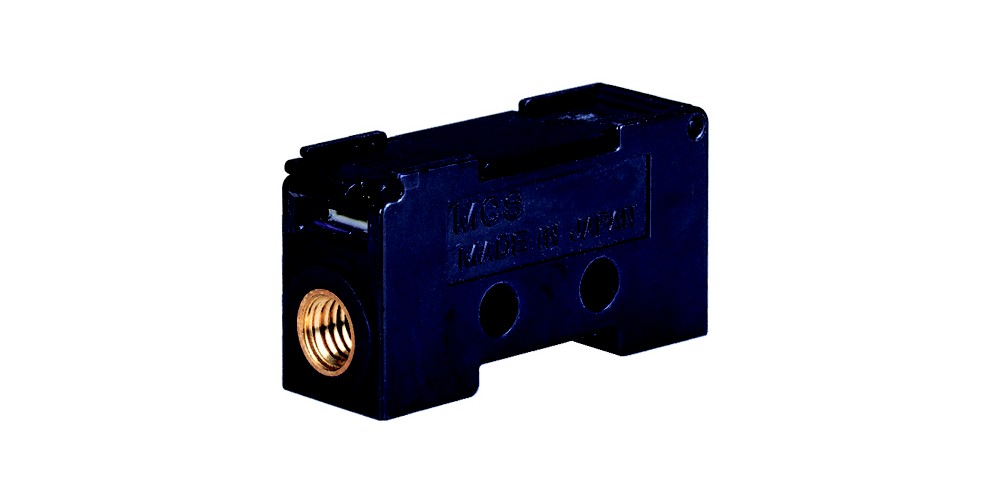

MCS1

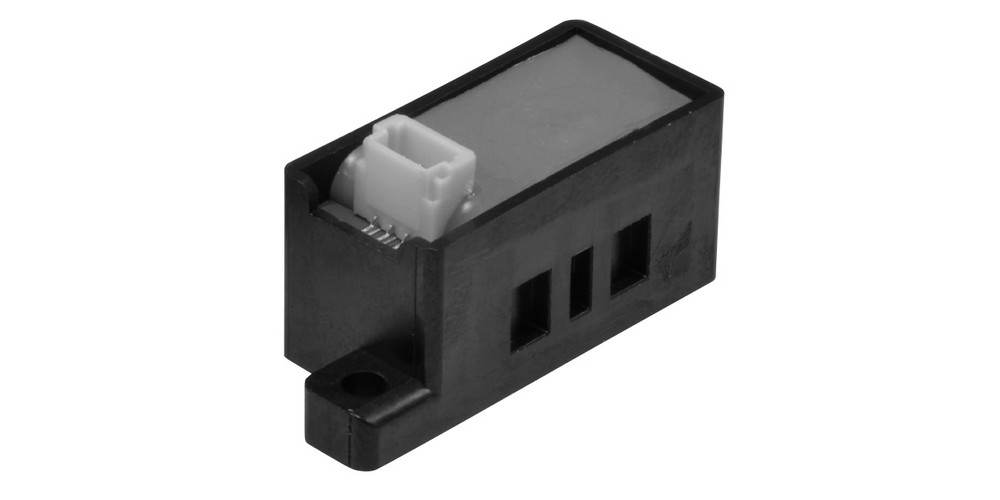

MCS2

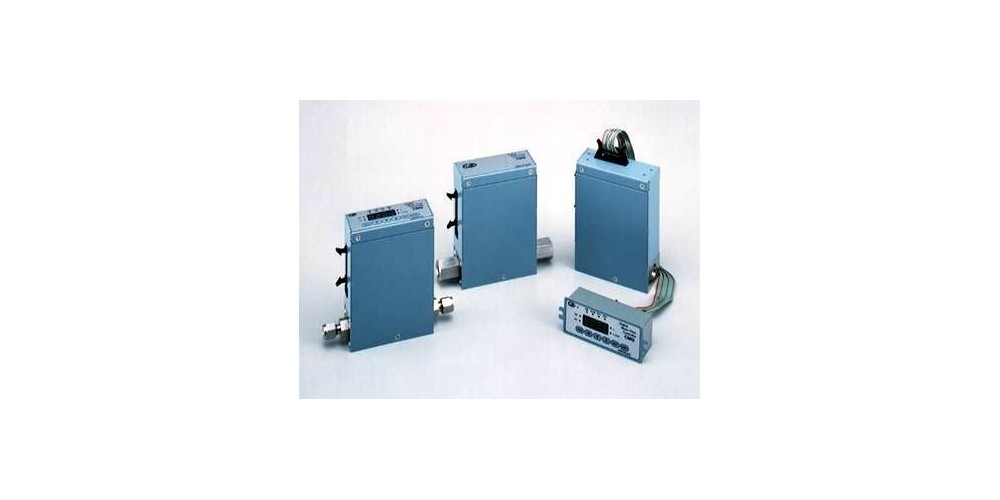

MQV

The Flow controller Series MQV includes a proportional solenoid valve. The high speed control (up to 300ms) and low pressure drop make the flow controller MQV ideal for tuning burners and flow control for gas injection vacuum evaporation. The MQV has a wide range of measurement and control (0.2, 0.5, 2, 5, 20, 50, 200, 500l/min).

MQV

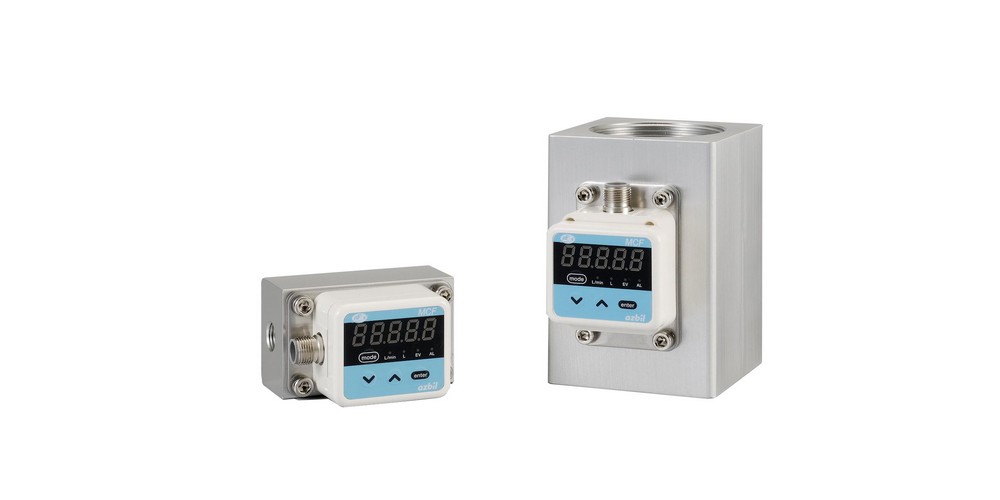

MCF

The MCF mass flow meter is suitable for measuring the mass flow of compressed air or nitrogen in networks or upstream of a machine.

MCF

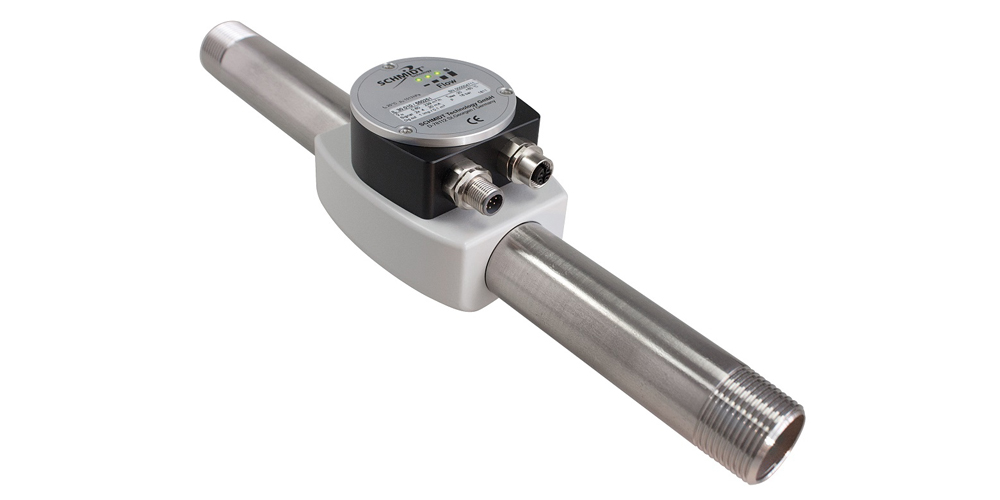

MPM

The MPM mass flowmeter is suitable for mass flow measurement of compressed air or nitrogen. With a new multi-point measuring system (MPM), 4 independent measurement points, ideally distributed, and a temperature sensor, the MPM flowmeter provides an accurate solution even if the fluid velocity profile is highly degraded.

The measuring ranges are from 0.25 Nm3 / h to 712 Nm3 / h with four diameters according to the desired flow rate: DN15, 25, 40 and 50.

MPM
